Key Advantages

1.The columns and main beams are pre-assembled before shipment and delivered in a semi-finished state, which significantly reduces on-site installation time and labor costs.

2.The installation angle can be designed according to the roof slope, making it adaptable to various inclinations of tin roofs.

3.By increasing the height with columns on the tin roof, airflow is effectively improved to prevent panel overheating. This also enables the modules to receive better sunlight exposure, thereby enhancing power generation efficiency.

4.Made of anodized aluminum alloy, offering excellent corrosion resistance and a highly aesthetic appearance.

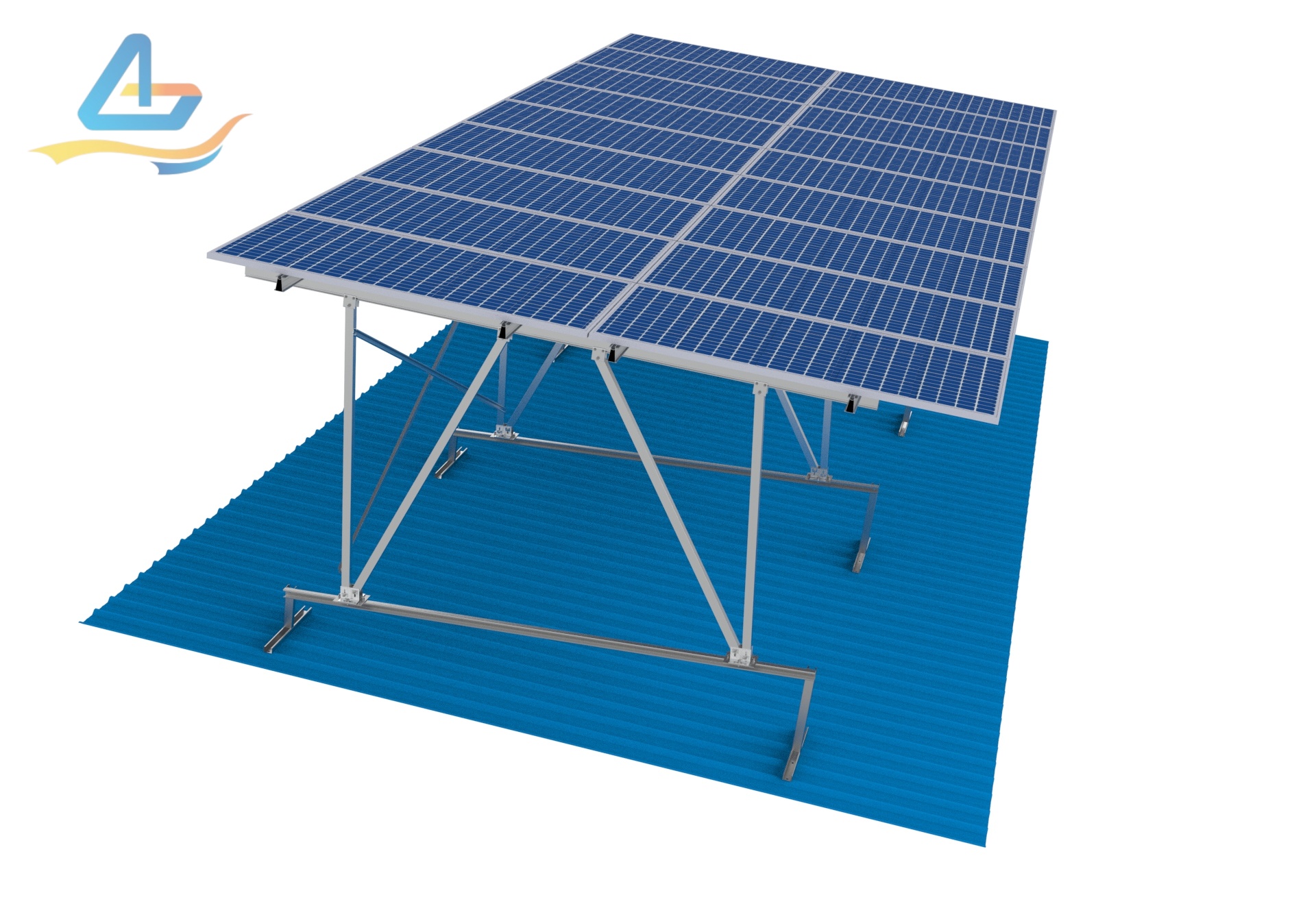

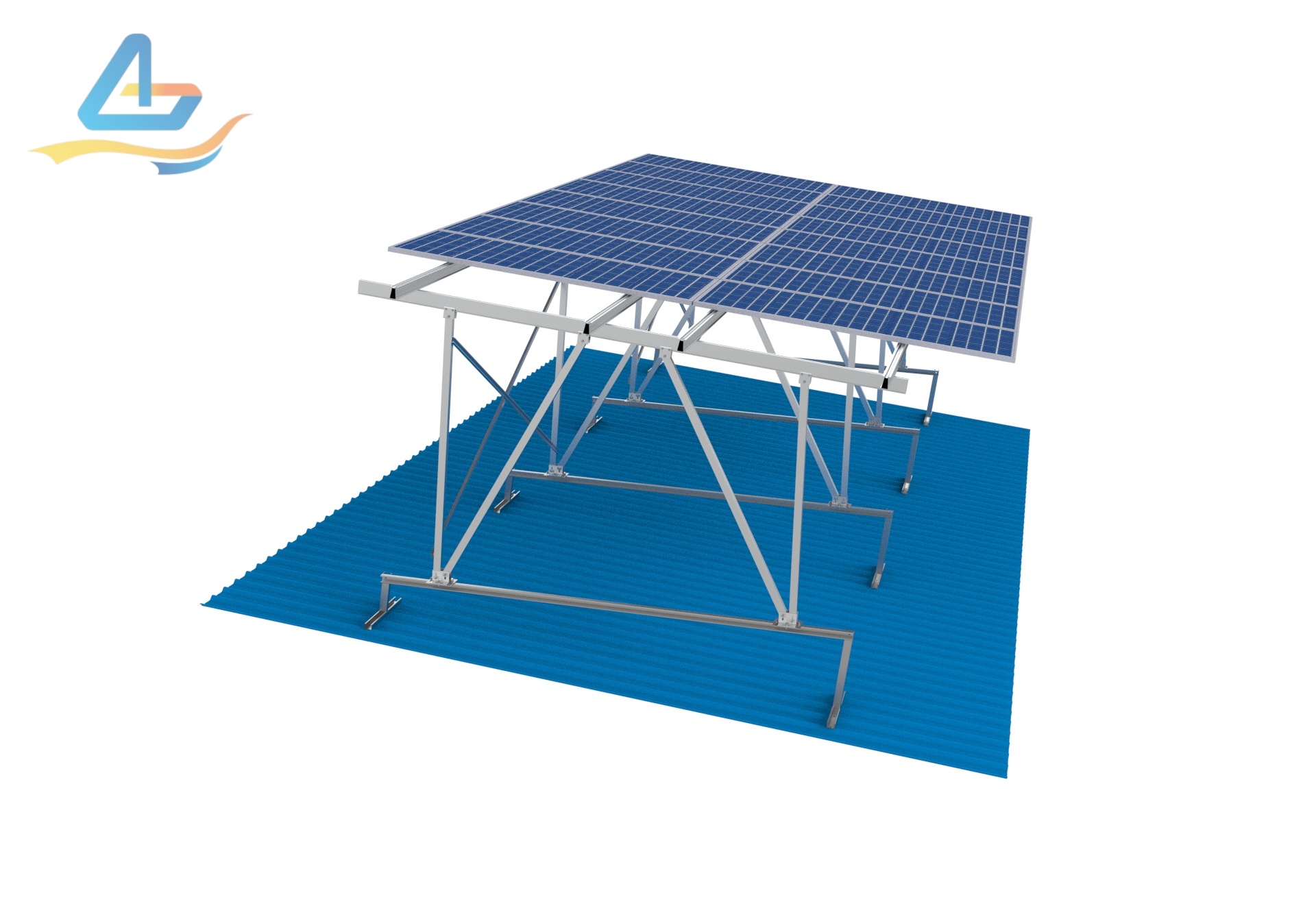

Korean Roof Solar Mounting System - Connections & Components

System Connections

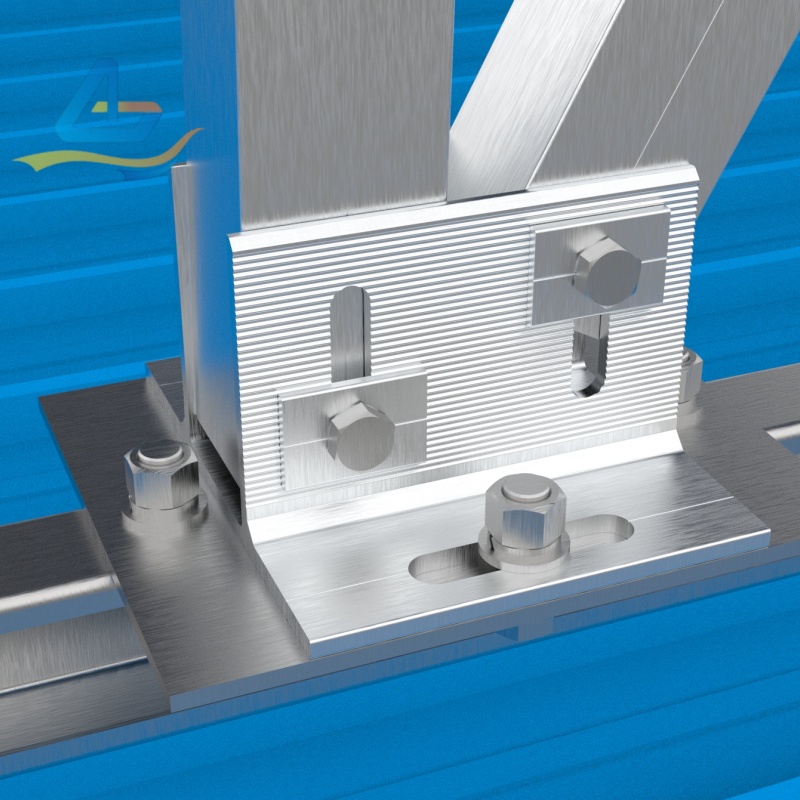

Bottom Base Connection

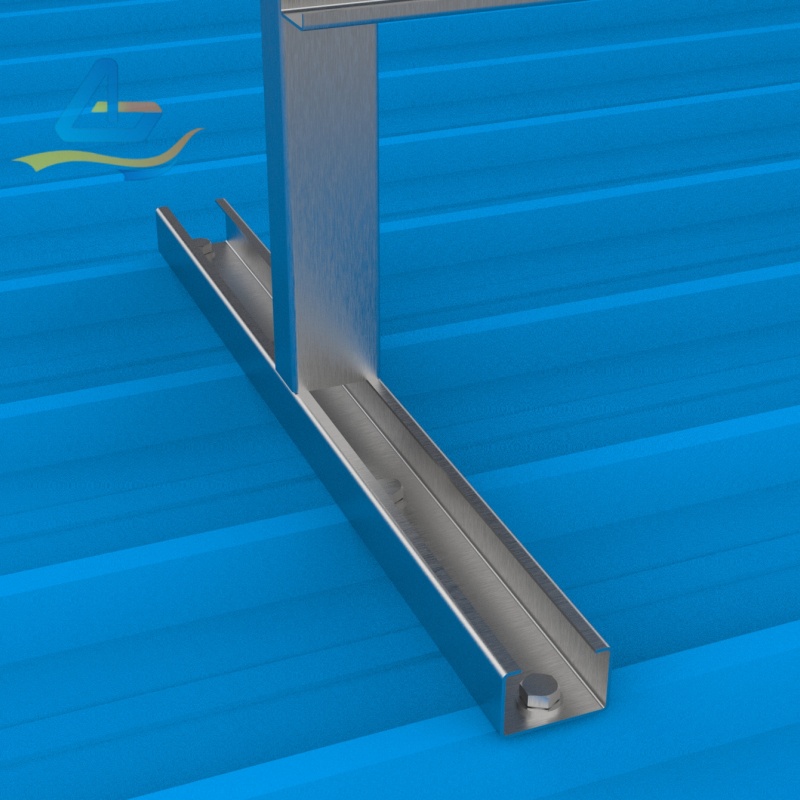

Bottom Beam Connection

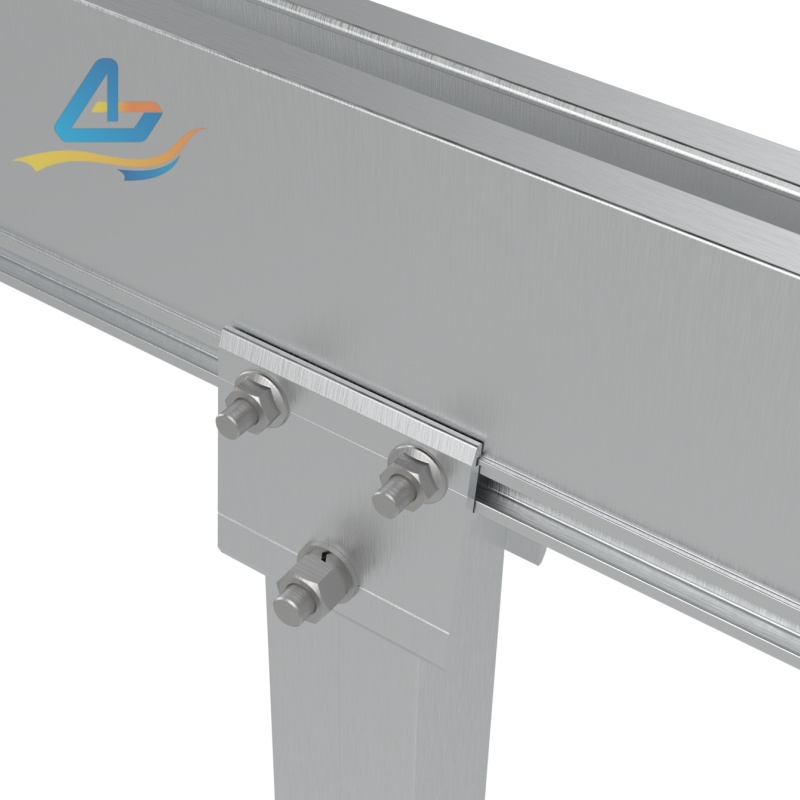

Column Connection

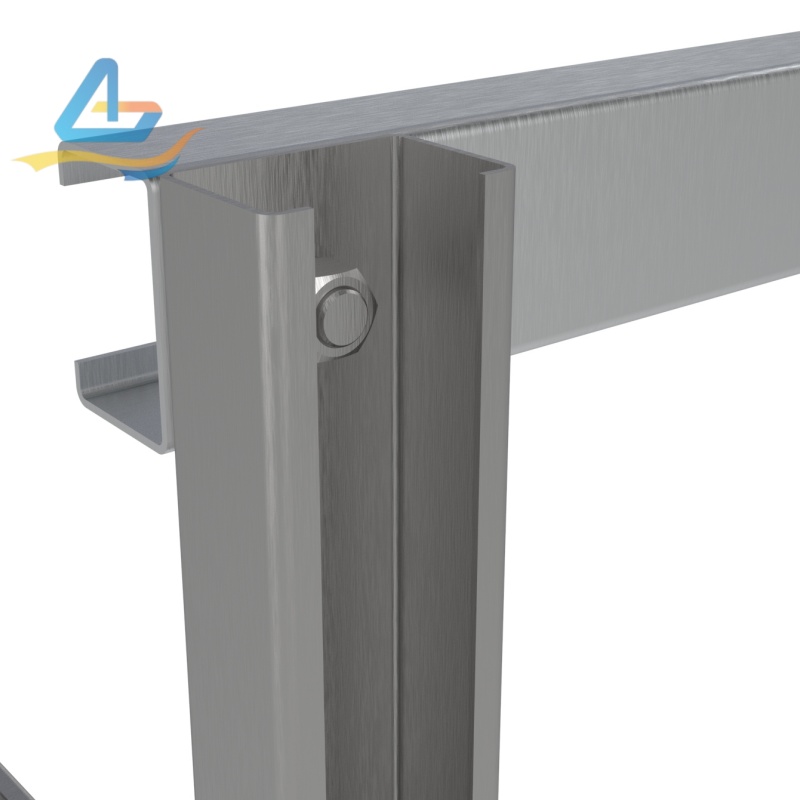

Crossbeam Connection

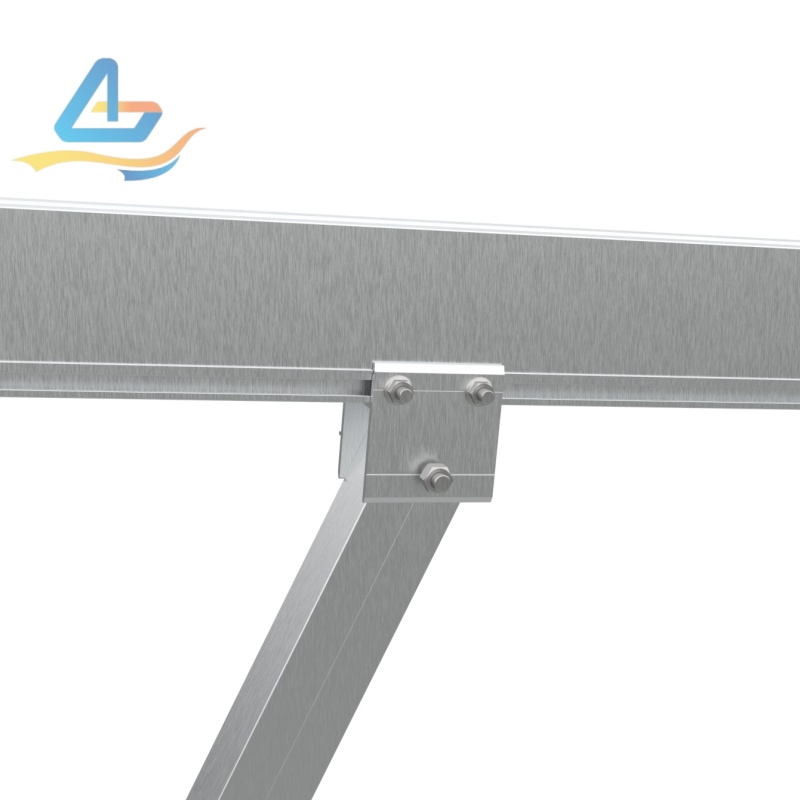

Diagonal Brace Connection

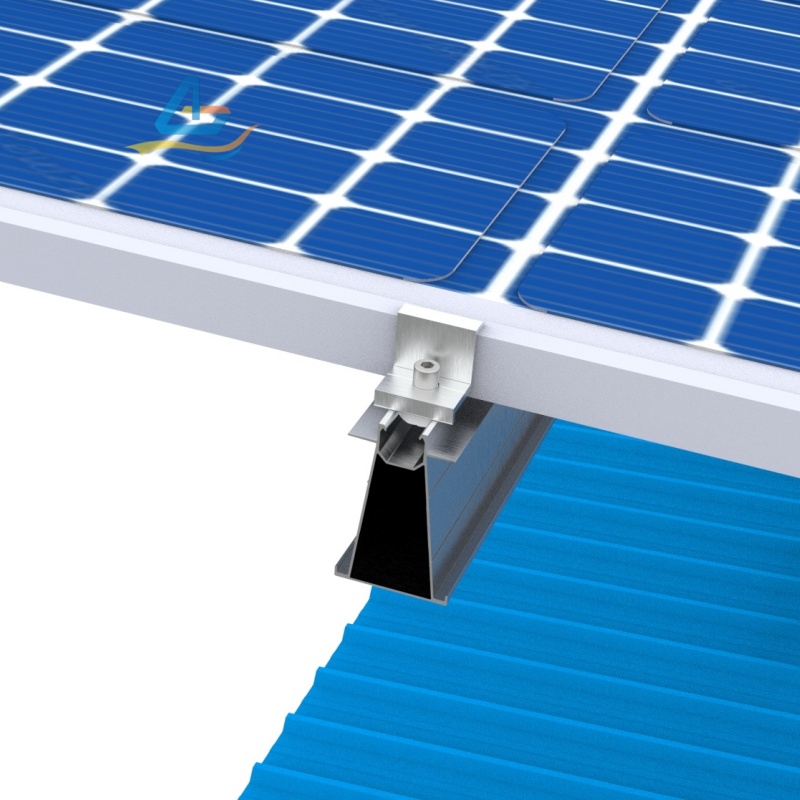

End Clamp Connection

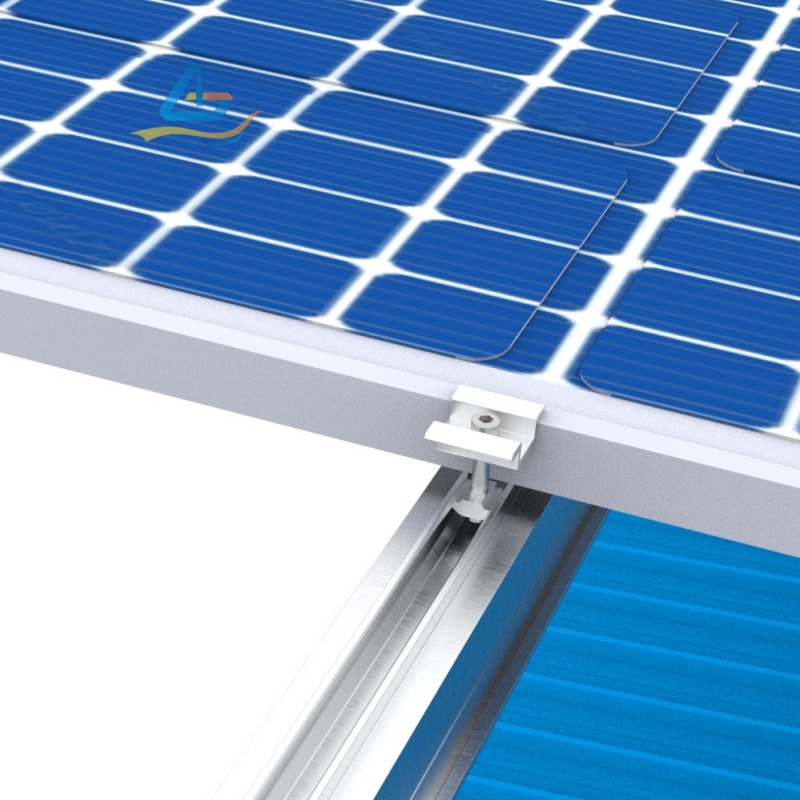

Mid Clamp Connection

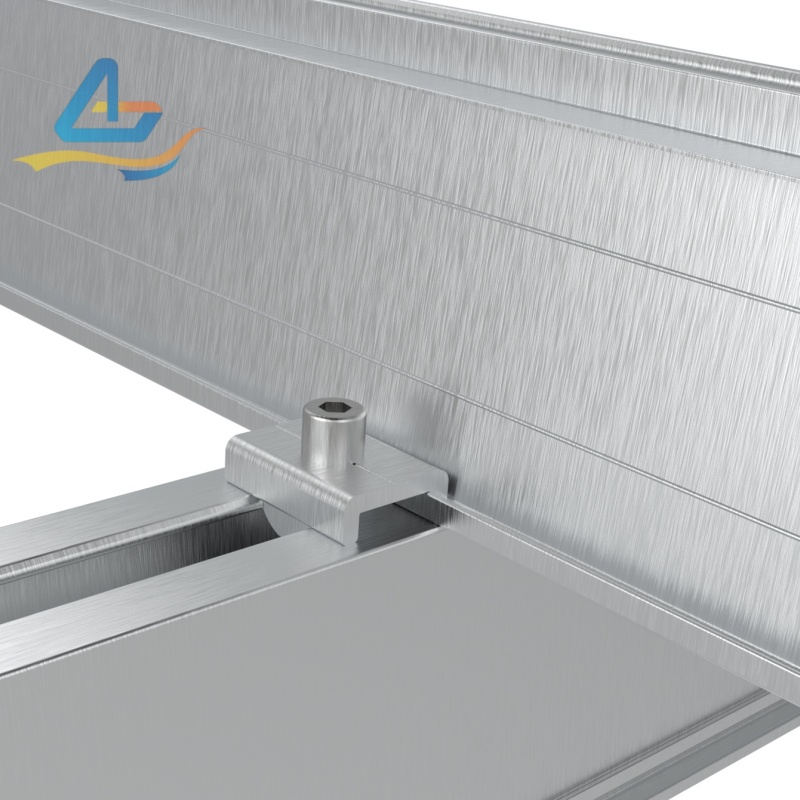

Rail Clamp Connection

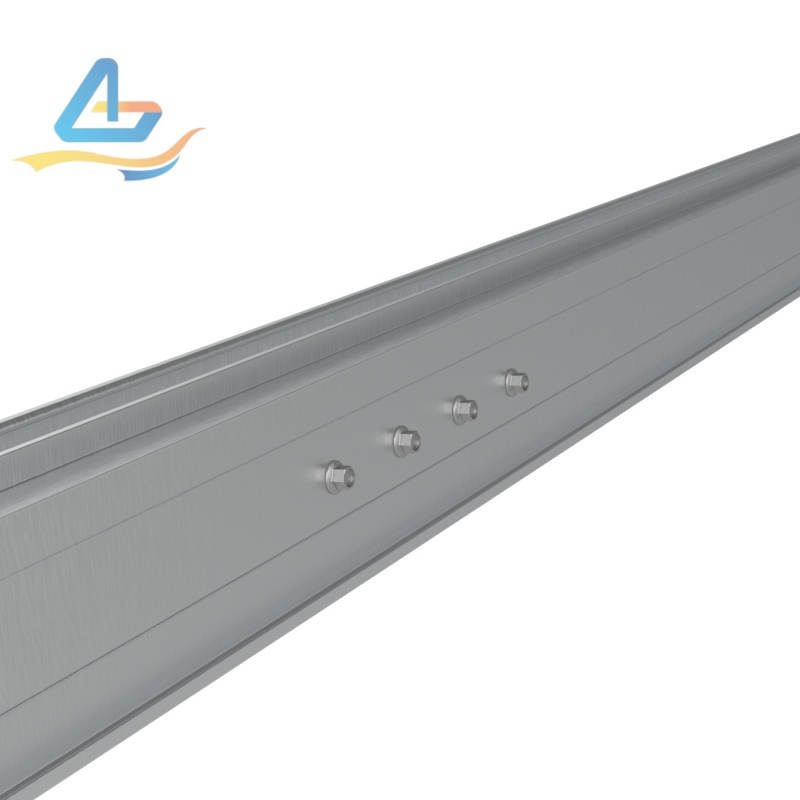

Rail Connection

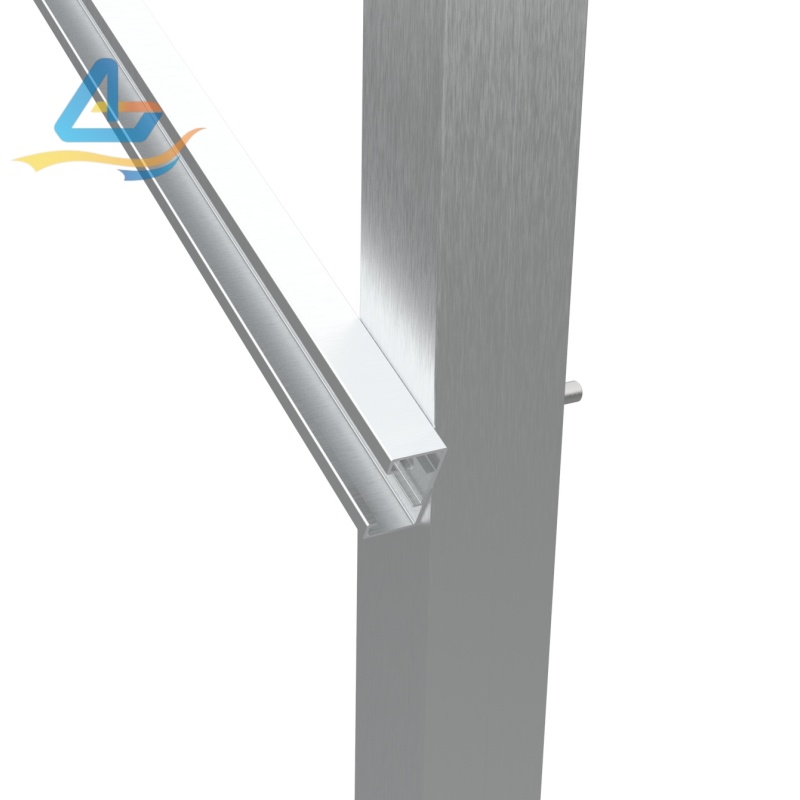

Rear Tie Rod Connection

System Components

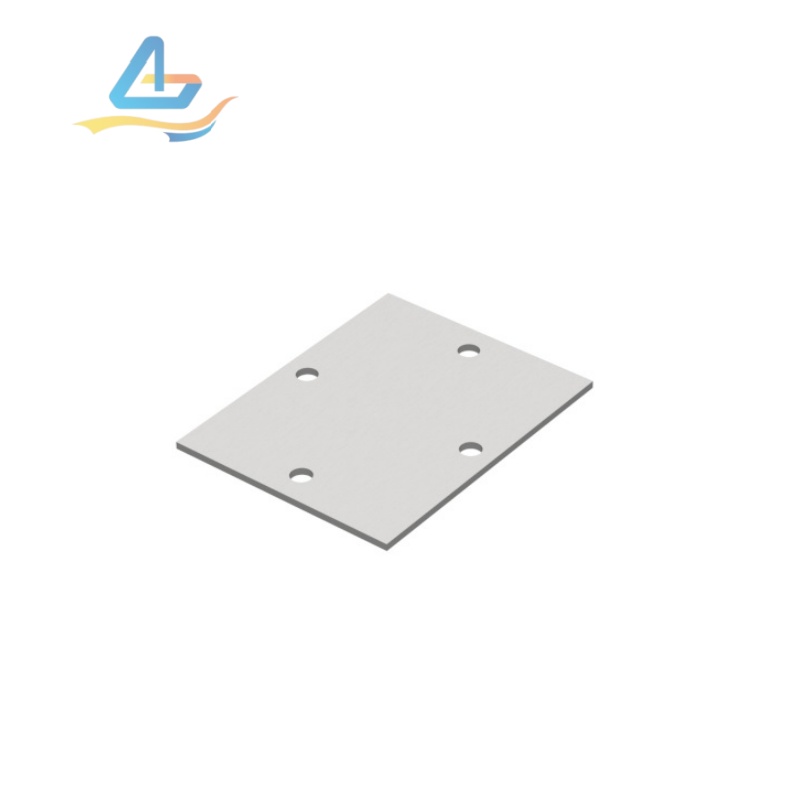

Base Plate

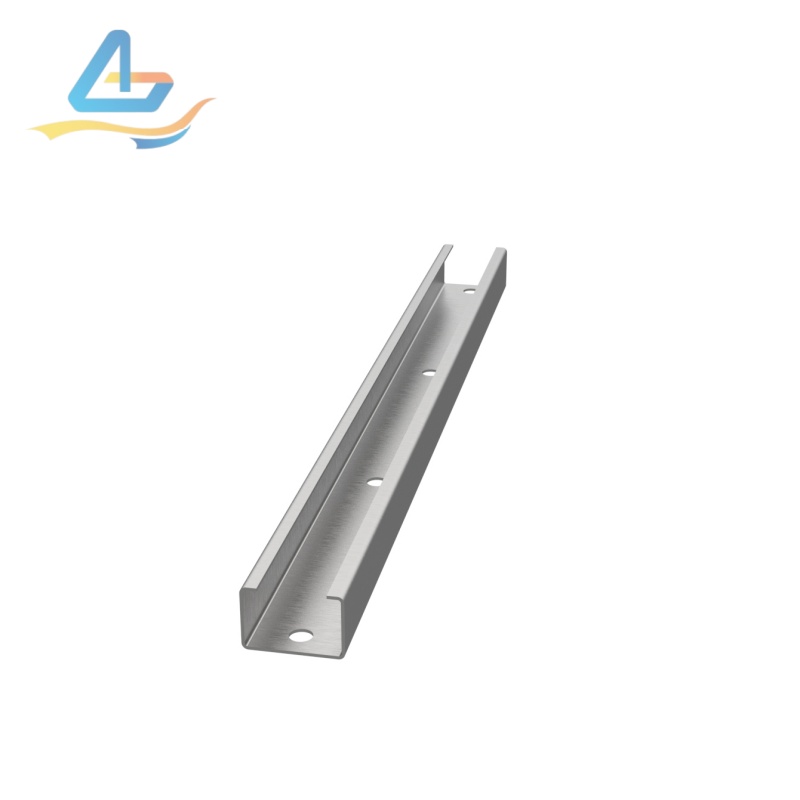

Bottom Beam

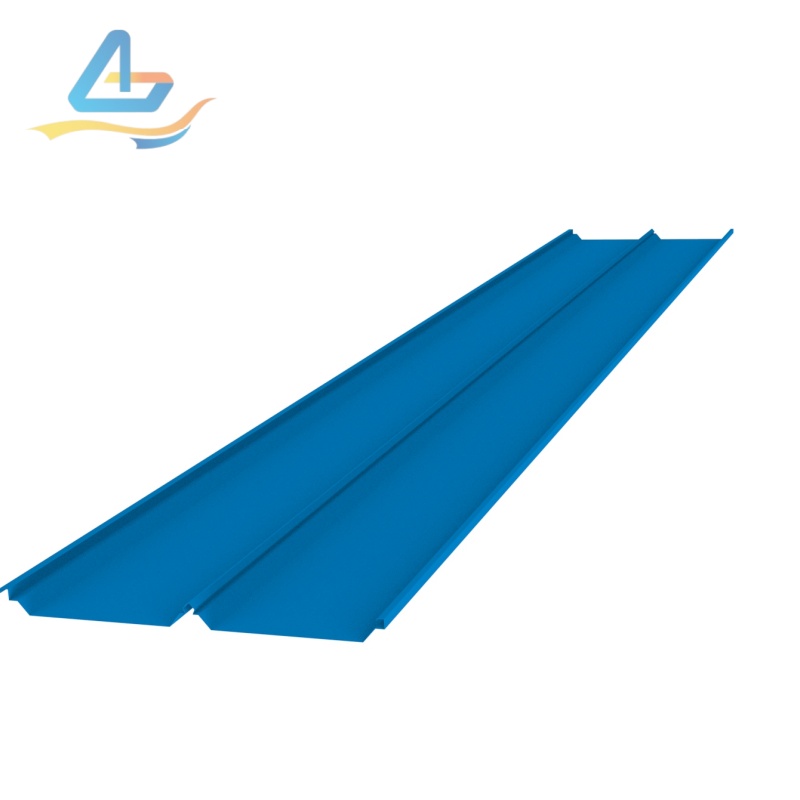

Color Steel Tile

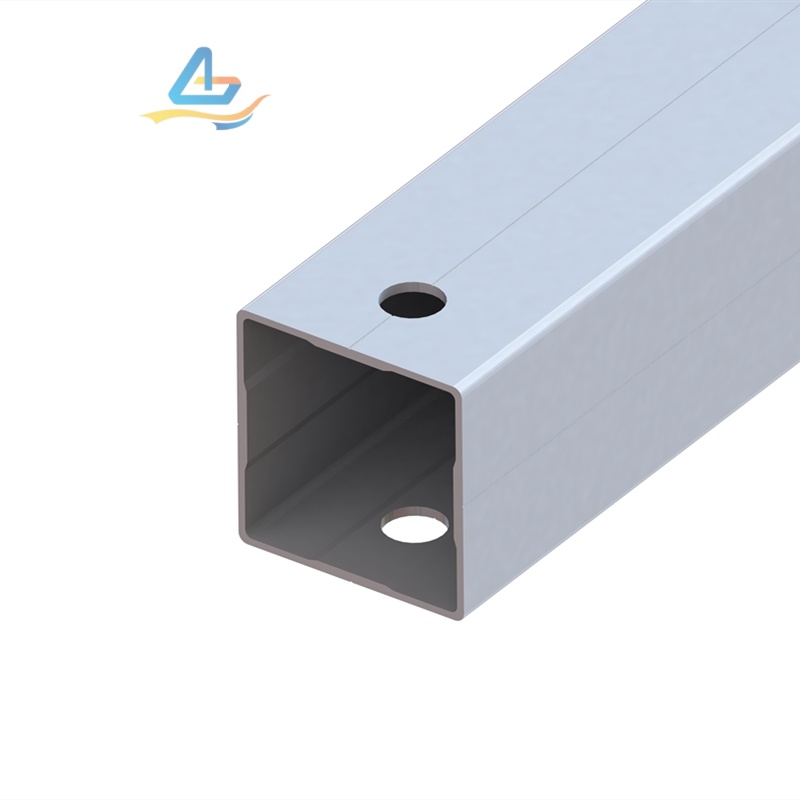

Columns & Diagonal Braces

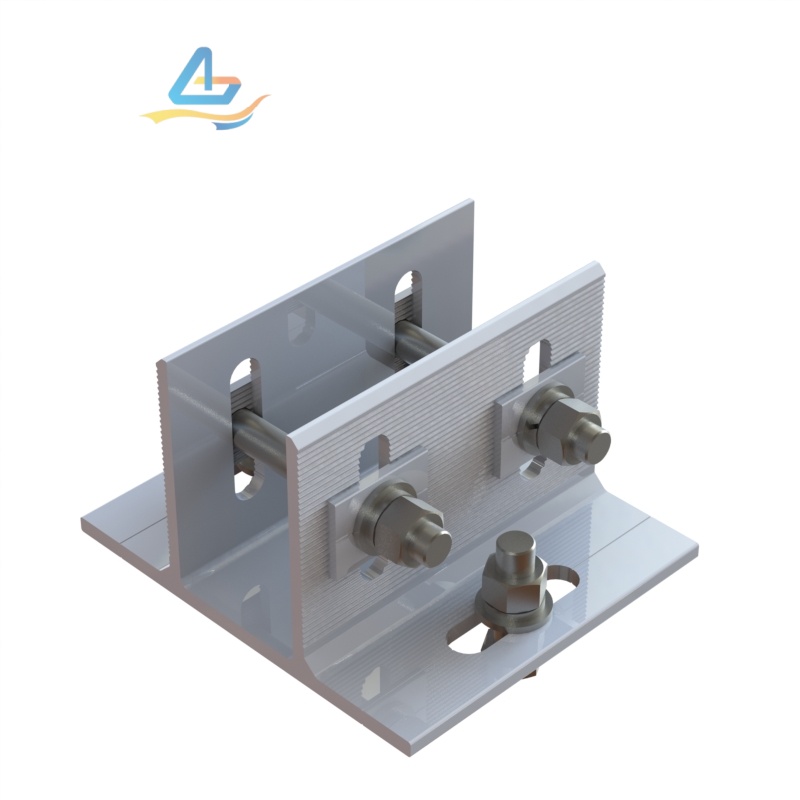

Double-Hole Base

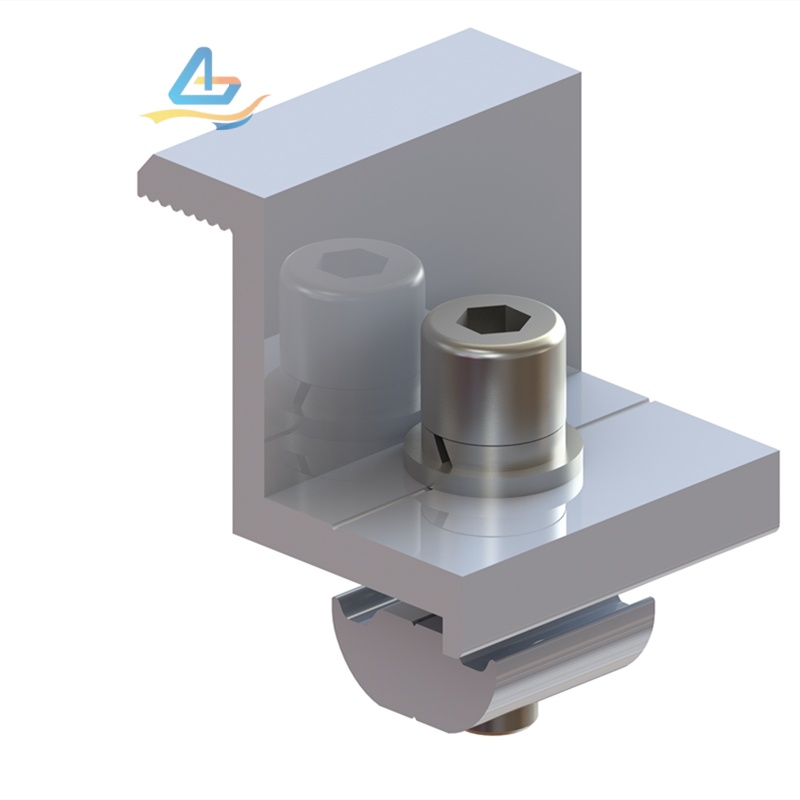

End Clamp

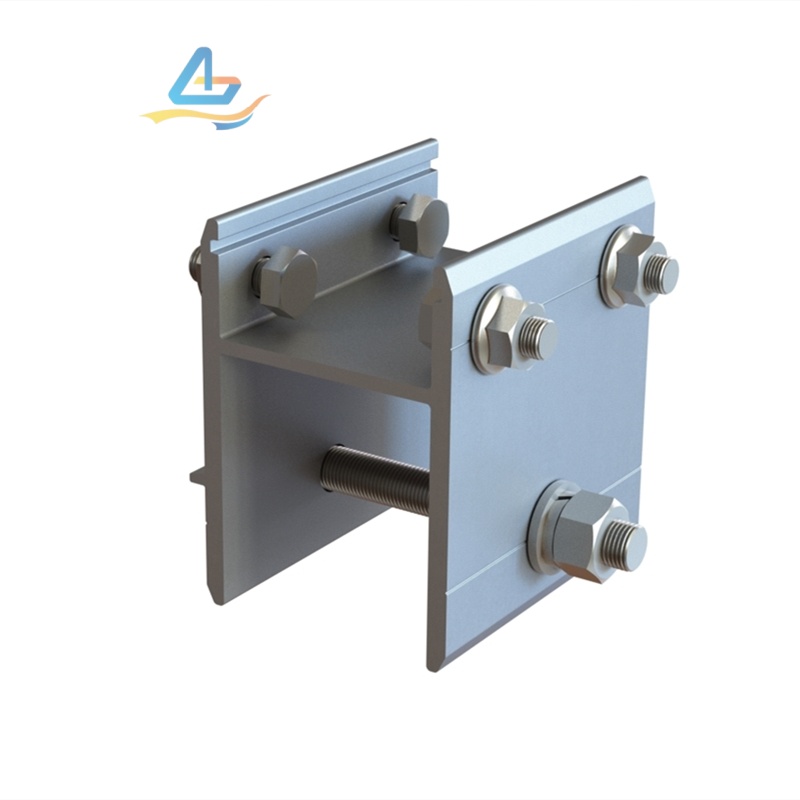

H Connector

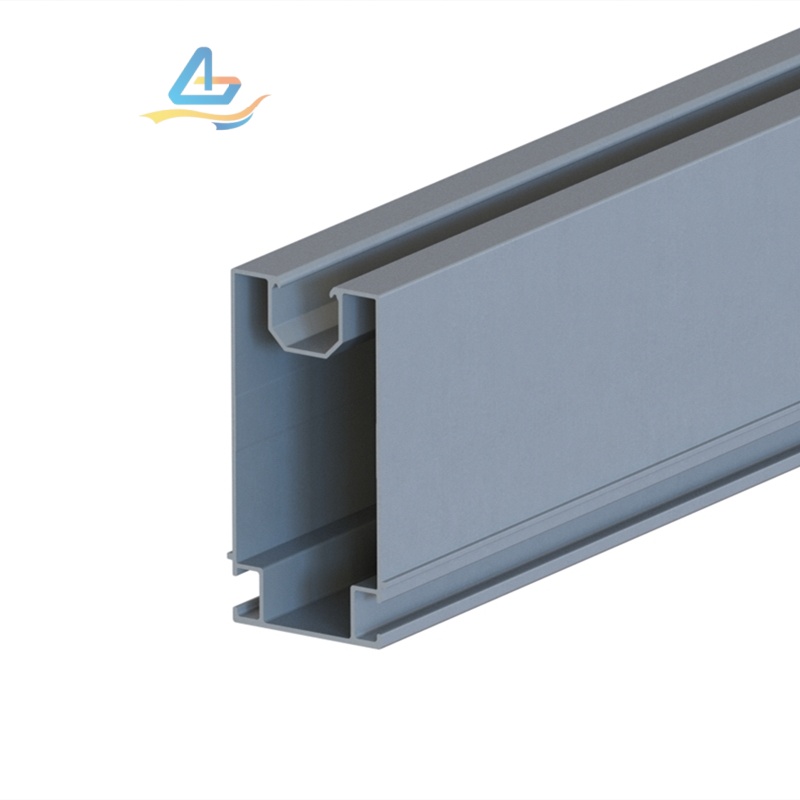

Main Beam

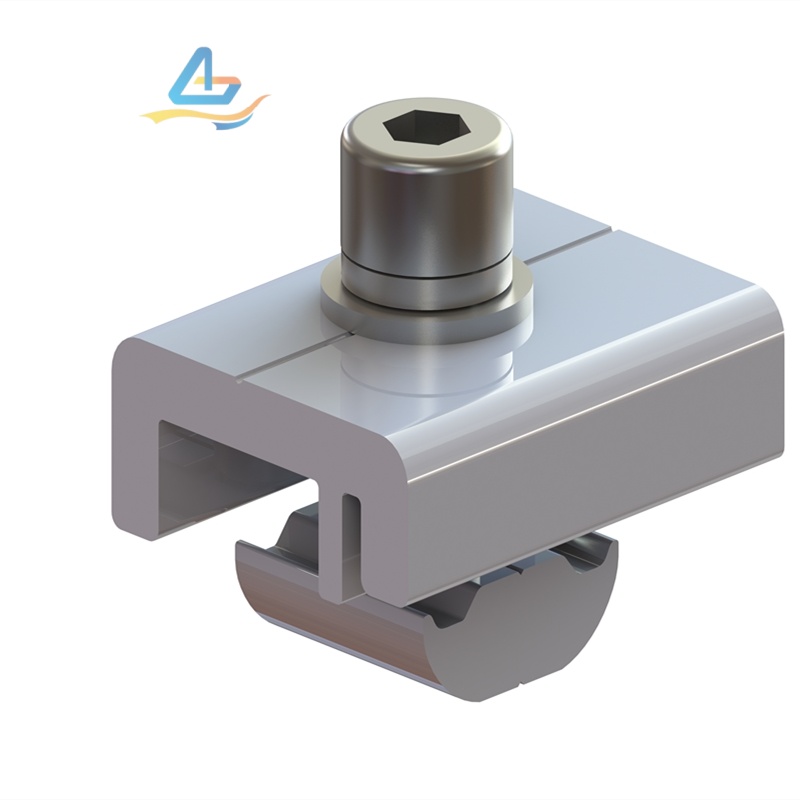

Rail Clamp

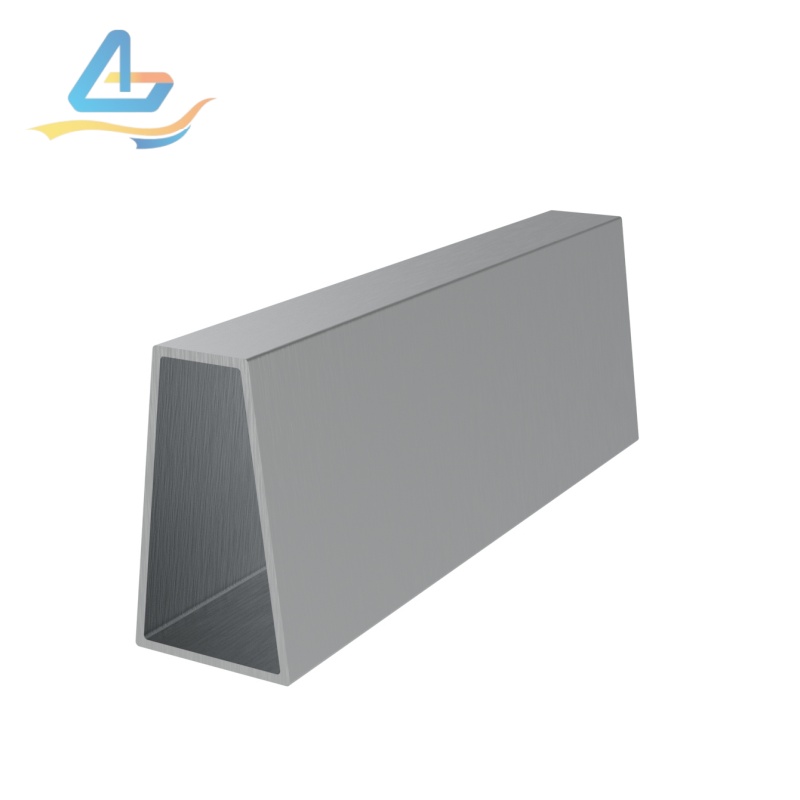

Rail Connection

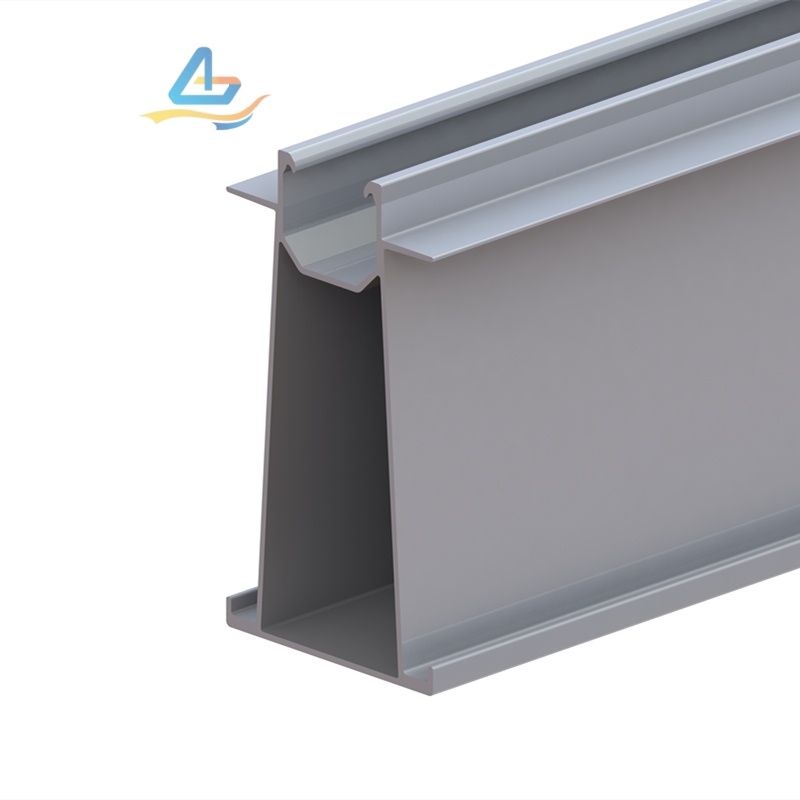

Rail-1

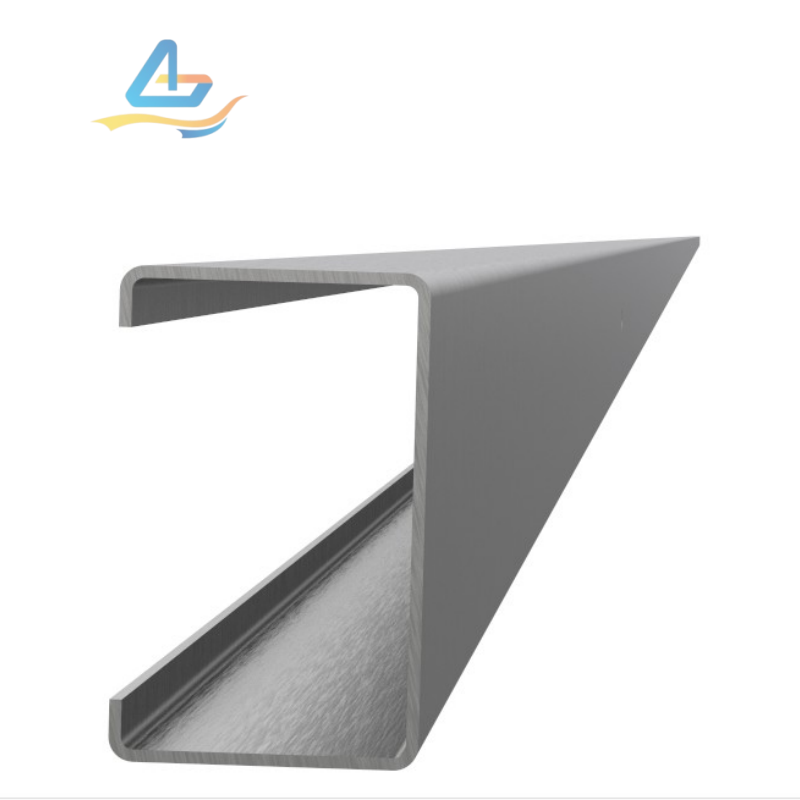

Rail-2

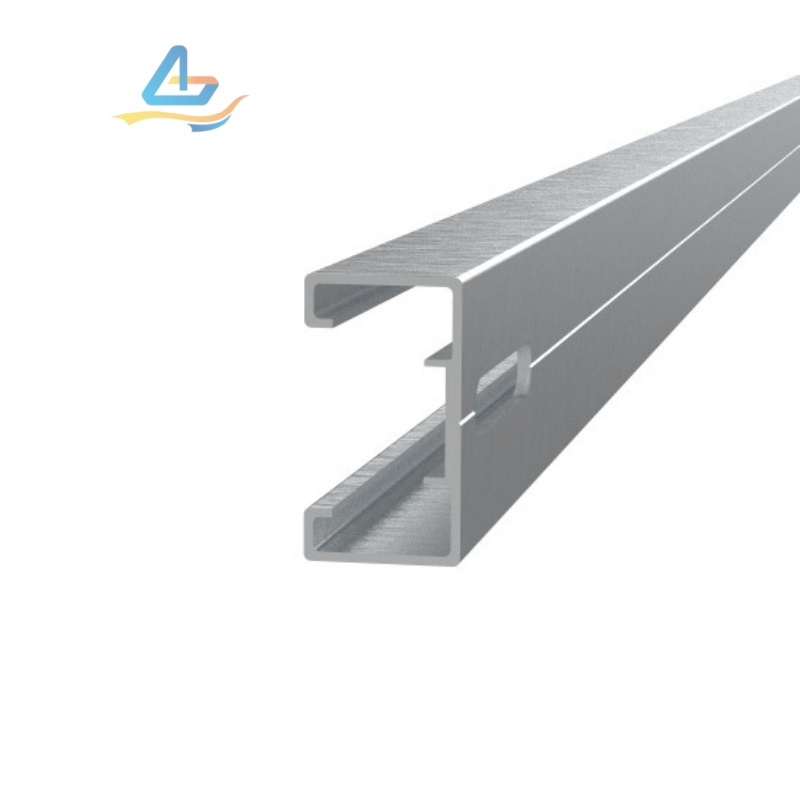

Rear Tie Rod

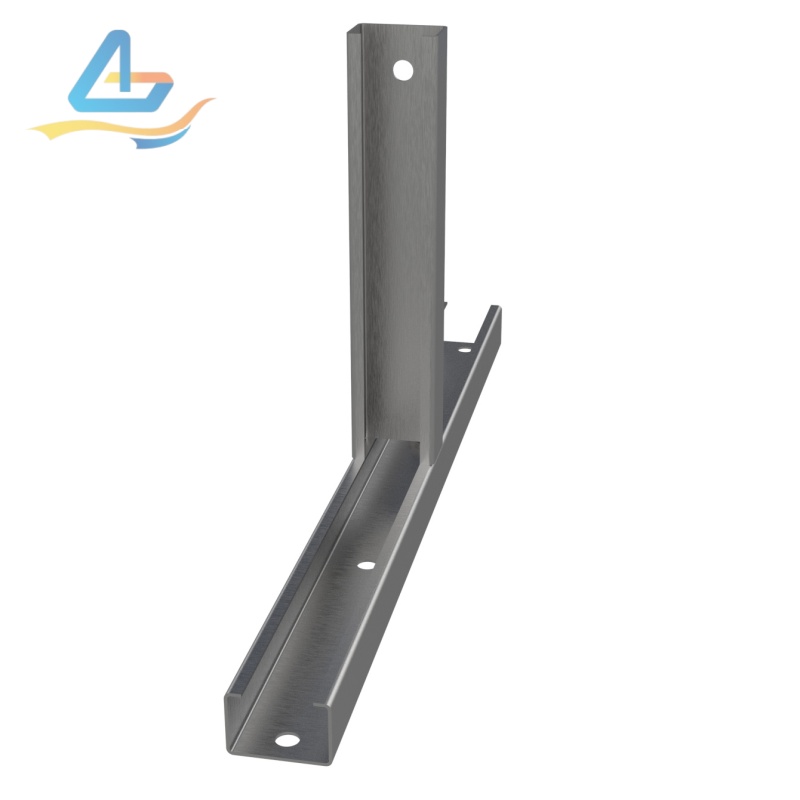

Welded Bottom Beam
